Quality Practices · Cavite Plant · Partner Credentials
Quality Practices.
Partner Credentials.
Clear Ownership.
XUDONG Philippines operates to ISO 9001 quality-system practices and IPC/WHMA-A-620 workmanship for Cavite assembly programs. The ISO 9001 certificate is held by our China manufacturing partner Hebei Cloom, which also holds the IATF 16949 certificate. Supporting quality records are available for supplier qualification.
IATF
16949
Held by Hebei Cloom
ISO
9001 practices
Certificate held by Hebei Cloom
≥60 N
Crimp pull-force
vs 40 N IPC-A-620 min
IPC
A-620 workmanship
Operator training
Quality References
Practices And Partner Credentials.

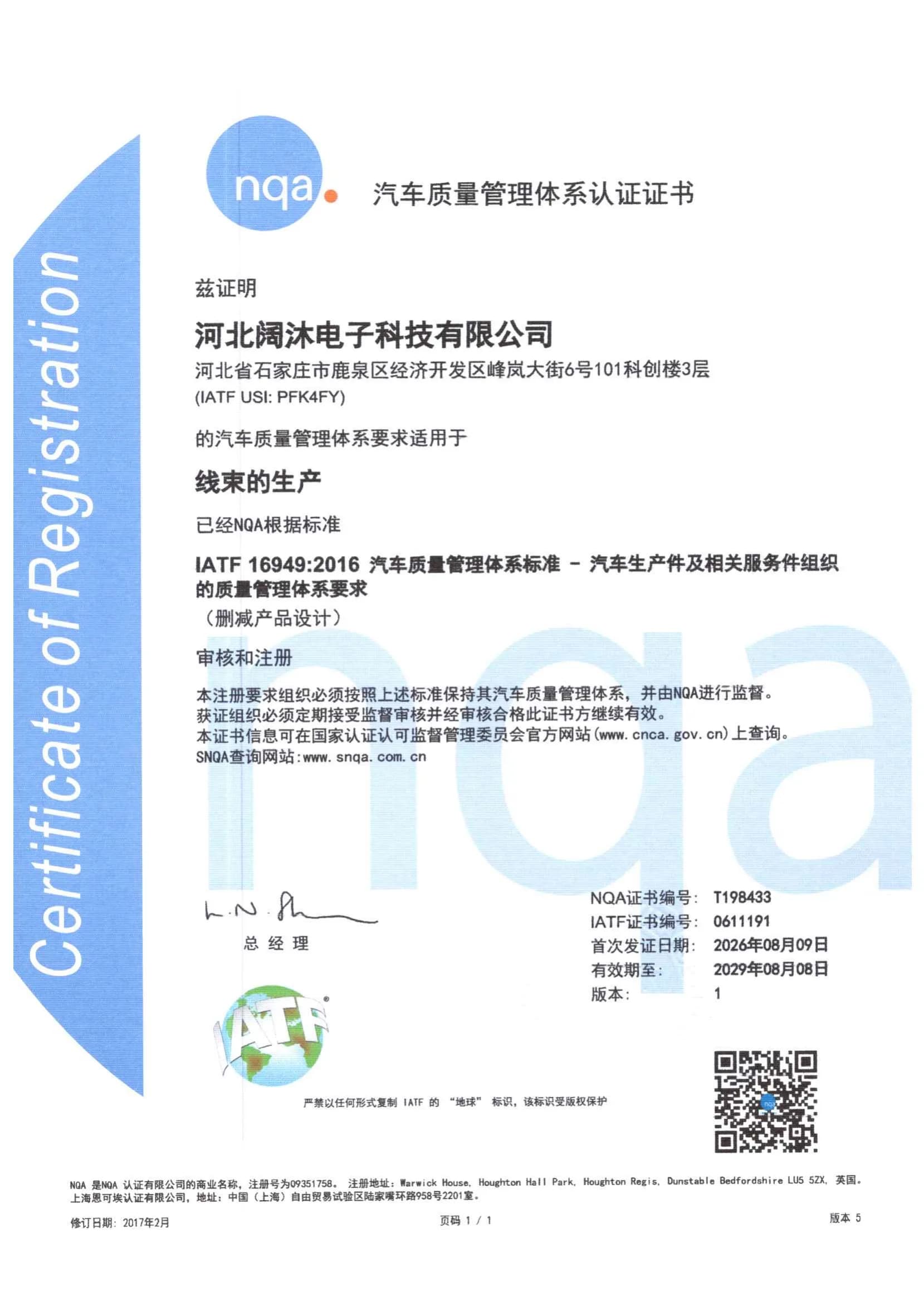

CERT.01
IATF 16949
Automotive-grade process control with full PPAP/APQP discipline. The IATF 16949 certificate (NQA T198433 / IATF 0611191, valid to 2029-08-08; scope: wire harness production) is held by our China manufacturing partner Hebei Cloom Electronic Technology Co., Ltd. The Cavite floor builds automotive programs to the same system — this is not a Cavite-site certificate. Click the scan to view it in full.

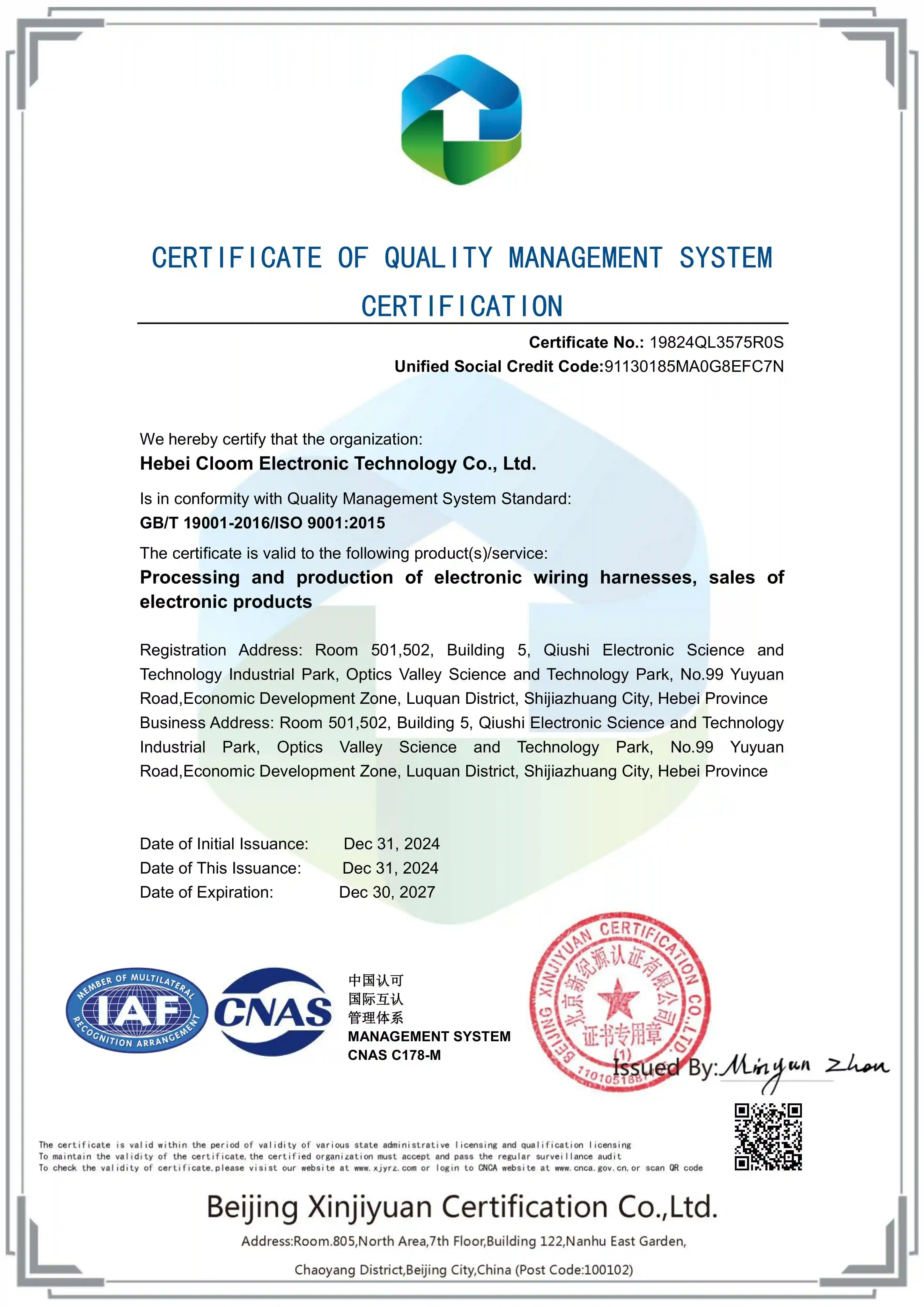

CERT.02
ISO 9001:2015
The ISO 9001:2015 certificate (No. 19824QL3575R0S, valid to 2027-12-30; scope: processing and production of electronic wiring harnesses) is held by our China manufacturing partner Hebei Cloom Electronic Technology Co., Ltd. The Cavite plant builds to this quality system — this is not a Cavite-site certificate. Click the scan to view it in full.

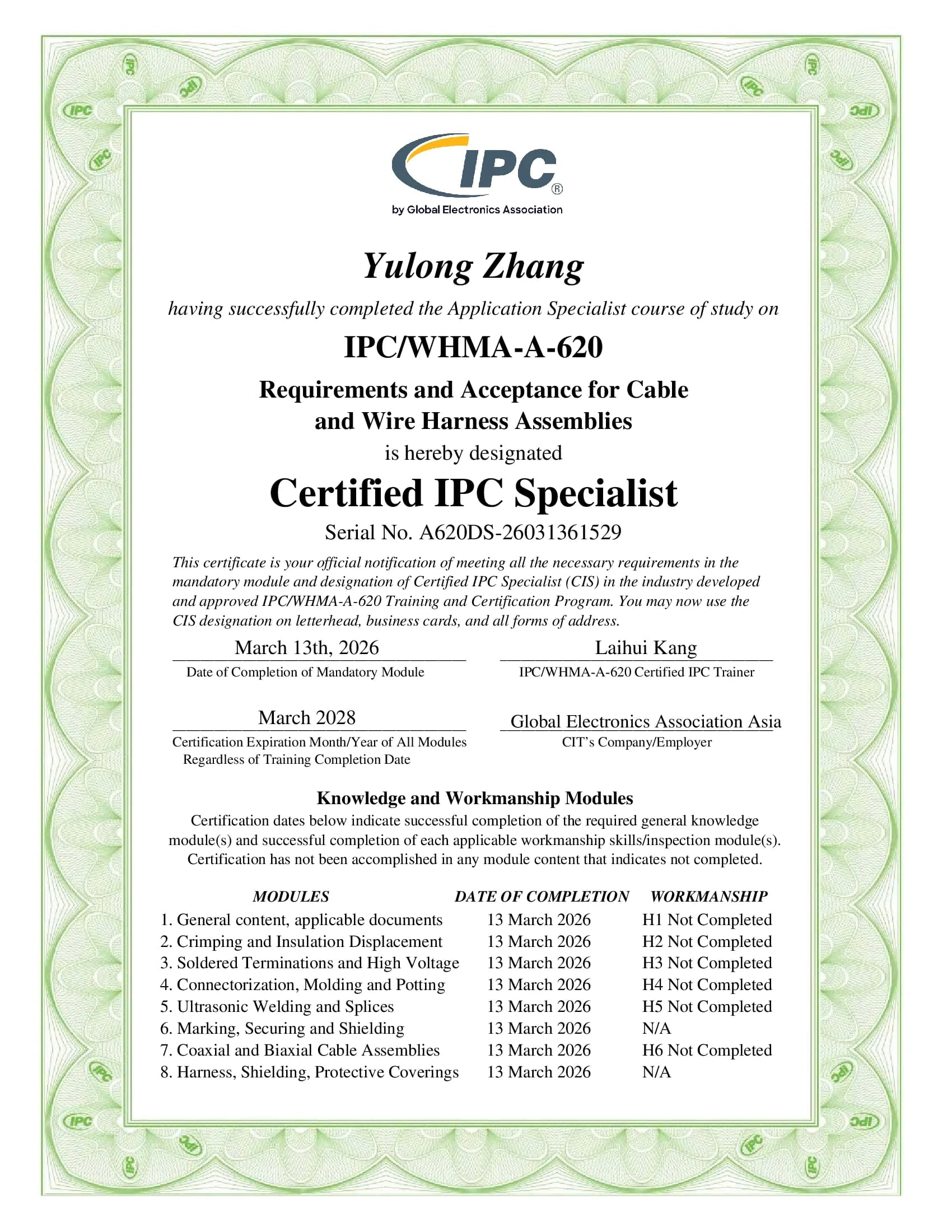

CERT.03
IPC/WHMA-A-620
IPC/WHMA-A-620 Certified IPC Specialist (CIS) credential (Serial A620DS-26031361529, valid to 2028-03) held by a quality specialist at our China manufacturing partner Hebei Cloom. Cavite operators are trained and build to the same IPC/WHMA-A-620 Class 3 acceptance criteria. Click the certificate to view it in full.
Test Protocol · IPC-A-620 Class 3
Six Tests Every Harness Sees.
Continuity Verification
Cirris CR-easy: 100% net continuity, 100% open, 100% short. Pass = 0 anomalies.
Dielectric Withstanding
1500 V AC, 60 s, leakage threshold 0.5 mA per IPC/WHMA-A-620 Class 3.
HiPot / Insulation Resistance
500 V DC, ≥ 100 MΩ between conductors per UL 758.
Crimp Pull Force
Daily pull-test on a sample of every terminal lot. ≥ 60 N for AWG 22 vs 40 N IPC-A-620 minimum.
Visual Inspection
10× microscope review of crimp height, bell mouth, insulation crimp per IPC-A-620 Class 3 §19.
Environmental Sampling
Salt-fog 96 h, thermal shock -40 / +85 °C × 100 cycles, IP67 immersion on every new program.
On The Floor · Cavite Plant
Test & Inspection Equipment.
Pull-Force Tester
Calibrated to ±5 N. Daily sample of every terminal lot, AWG 22 target ≥ 60 N (vs IPC-A-620 Class 3 minimum 40 N).
Crimp Microscope Inspection
10× magnification per IPC-A-620 §19. Crimp height, bell mouth, and insulation crimp reviewed on every lot first-article.
Lead-Free Solder Pot
SWT-100 SAC305 alloy, lead-free per RoHS. Tinning operation feeds the next overmold cell.
Automated Soldering Cell
YJCH 205H smart soldering, closed-loop temperature control at 380 °C ±3 °C.
Auto Wire Cut & Strip
Komax-style cell with vision feedback; zero-strand-damage strip per IPC-A-620 Class 3 §5.
Terminal Crimping Station
Four-point cross-section every shift, CJT/Molex/TE die calibration logged in MES.
Material Library Is Audited Per Lot.
Every wire, terminal, connector and over-mold compound that enters the Cavite plant is traceable to its supplier certificate and material file. Lot data is bar-coded into MES at receiving and stays attached to every harness through final test.
- UL 758 / UL 1581 verified wire library (TE, Lapp, Belden, Allied)
- RoHS 2015/863 + REACH SVHC declarations on file per BOM line
- IMDS submissions auto-generated for IATF customers
- Conflict-mineral 1502 declarations refreshed annually
Documentation Available On Request
- · PPAP Level 3 (default for IATF customers)
- · Capability study (Cpk ≥ 1.33 minimum)
- · FMEA — design and process
- · Control plan + reaction plan
- · MSA — gauge R&R per AIAG
- · IMDS submissions for automotive
- · Conflict-mineral CMRT
Next Step
Audit-Ready Means Audit-Welcome.
Schedule a Cavite plant tour or request the full audit pack — we'll send you whatever your QA team needs to qualify us. Quote returned within 12 hours. NDA on file. No obligation.
