Industrial Circular Connectors: OEM-Spec Assembly.

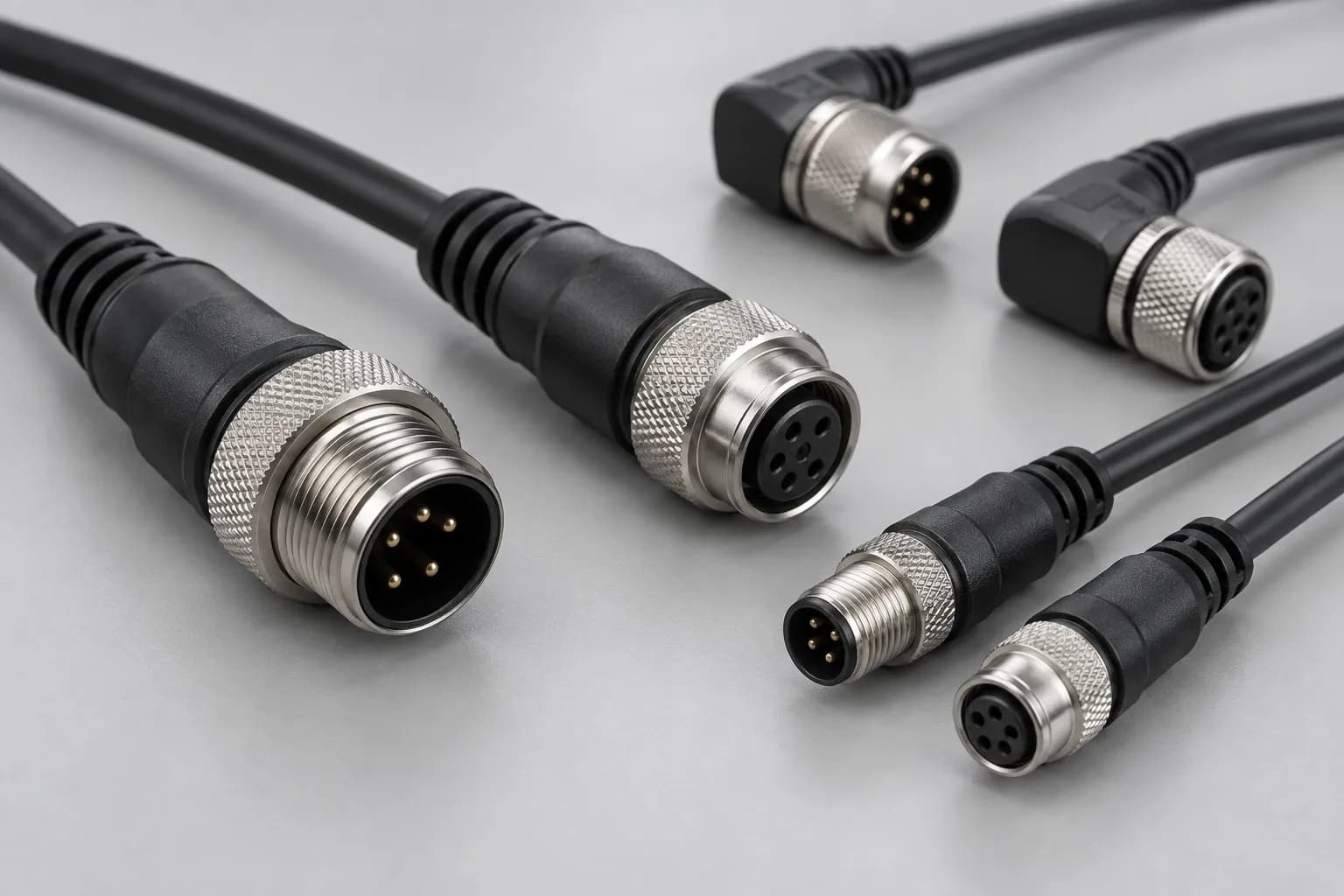

M12, M8, M23 and 7/8" circular connector programs built on the Cavite floor — UFLPA input-traceability support; Philippine origin, Section 301-free for product that qualifies as Philippine origin (standard US import duties may still apply, as determined by your customs broker), IP67/IP68 sealing verified, IPC/WHMA-A-620 Class 3 acceptance by default. Send the drawing or part number and we will reply with unit price, lead time, and a sample plan inside 12 hours.
Buyer Reality
Where Most circular connectors Programs Slip.
Issue #01
M12 A/D/X coding mated to the wrong network signal
M12 circulars share one 12 mm thread but carry different keyings (A-code for sensor/actuator DC, D-code for 100 Mbit Ethernet, X-code for 1/10 Gbit) per IEC 61076-2-101 and -109. An A-coded plug forced into a D-coded receptacle shears the polarization key and shorts an I/O line to a data pair. Our build station binds the coding letter to the network signal on the BOM line before the coupling nut is torqued — not a generic 'M12 connector' item.
Issue #02
IP67/IP68 seal lost to over- or under-torqued coupling
Field ingress on M12/M8 circulars is almost always a coupling-nut torque problem: under-torque leaves the face O-ring uncompressed, over-torque extrudes it. We assemble on a torque-controlled cell set to the connector series spec and re-verify the seal by immersion, so the IP67/IP68 rating survives wash-down and outdoor service.
Issue #03
Cable gland clamp-range mismatch causes pull-out and ingress
A back-shell or gland sized for a 6–8 mm jacket clamped onto a 5 mm cable never seals and pulls the contacts under strain. We match the gland clamp range and strain-relief to the actual cable OD on every drawing, and pull-test the assembled strain relief before pack-out.
Issue #04
Contact plating wear over mating cycles
Gold-flashed circular contacts wear to the nickel base after repeated connect/disconnect on sensor and robotics lines, raising contact resistance until the signal drops. We gate incoming contact plating and screen contact resistance so worn or under-plated lots are held at first article.
Issue #05
Coupling back-off and shell corrosion under vibration and salt
Threaded circular couplings loosen under vibration without a proper anti-vibration design, and zinc-alloy shells corrode in coastal or wash-down duty. We validate the coupling retention on a vibration profile appropriate to the application and screen shell plating with salt-spray exposure per ASTM B117 before release.
What We Build
The Capability Stack Behind The Build.
IP67 / IP68 ingress verified per IEC 60529
Assembled circular connectors are seal-checked by immersion per IEC 60529 (IPX7 30-minute / IPX8 to the customer's stated depth-time), with results logged against the harness serial. The mated pair, the panel seal, and the cable gland are all checked — not just the connector face.
Torque-controlled M12 / M8 coupling assembly
Coupling nuts are seated on a torque-controlled driver set to the connector series specification (M12 per IEC 61076-2-101, M8 per IEC 61076-2-104), so seal compression is repeatable lot to lot rather than hand-feel.
100% continuity, HiPot, and contact-retention screening
Every circular assembly runs 100% continuity and 1500 V HiPot on a Cirris tester; contact retention and insertion/extraction force are checked per EIA-364-29 / -13 so contacts cannot back out of the insert under service load.
Salt spray and thermal-shock validation
Shell plating and seals are validated by ASTM B117 salt-spray exposure and IEC 60068-2-14 thermal shock for outdoor, coastal, and wash-down duty, with the report bound to the lot ID.
X-coded shielded circulars TDR-checked for Ethernet
X-coded M12 assemblies terminated to Cat5e/Cat6 are impedance-checked so the 4-pair shielded run holds its corridor end to end, and the shield 360-degree bond to the shell is continuity-verified.
Ingress, vibration, and thermal validation by program per IEC 60529 / IEC 60068-2
ISO 9001 quality-system practices and IPC/WHMA-A-620 operator workmanship; ISO 9001 and IATF 16949 certificates held by Hebei Cloom
Cirris CR/CH 100% continuity and 1500 V HiPot
FAQ
Procurement Questions, Answered.
Q.01What is the minimum order quantity for circular connectors?
+
What is the minimum order quantity for circular connectors?
Q.02How much do circular connector assemblies cost?
+
How much do circular connector assemblies cost?
Q.03What lead time do you commit to on circular connectors after RFQ?
+
What lead time do you commit to on circular connectors after RFQ?
Q.04Do circular connector shipments avoid the China Section 301 tariffs into the US?
+
Do circular connector shipments avoid the China Section 301 tariffs into the US?
Q.05Which circular connector series do you build?
+
Which circular connector series do you build?
Q.06Do you ship circular connector samples for free?
+
Do you ship circular connector samples for free?
Q.07Can you handle the circular connector engineering review before we have a finalized drawing?
+
Can you handle the circular connector engineering review before we have a finalized drawing?
Q.08What packaging protects this build? (Circular)
+
What packaging protects this build? (Circular)
Q.09How are common failures screened? (Circular)
+
How are common failures screened? (Circular)
Q.10Are tooling fees required? (Circular)
+
Are tooling fees required? (Circular)
Related Builds
Capabilities
Submit RFQ
Submit your Circular Connector drawing.
Send the drawing, BOM, or part number plus annual volume. Engineering desk replies within 12 hours with unit price, lead time, sample plan, and a certificate of origin documenting Philippine origin to support your customs broker's import filing. Standards reference: M12 connectors (https://en.wikipedia.org/wiki/M12_connector), IEC 60529 ingress protection (https://en.wikipedia.org/wiki/IP_code), IPC standards (https://en.wikipedia.org/wiki/IPC_%28electronics%29).
